Portable Usb Optical Fiber Video Inspection Microscope With 400x Optic Fiber Scope Probe With Lcd Monitor - Fiber Optic Equipment
SKU SD08192250037966
$690.00
In stock
1
Product Details
Weight: 0.30 kg

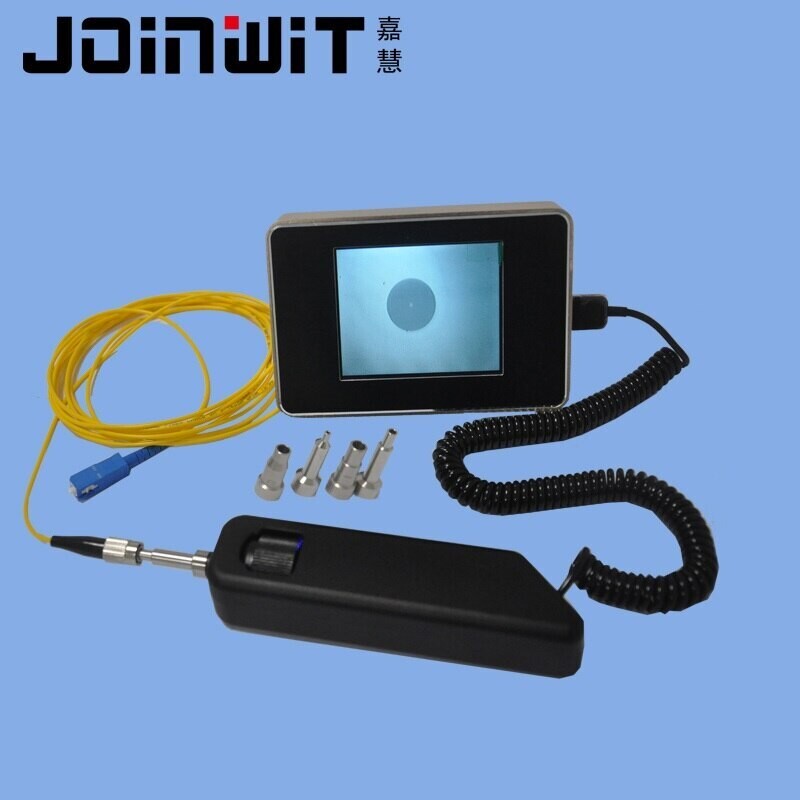

Portable USB Optical Fiber Video Inspection Microscope With 400X Optic Fiber Scope Probe with LCD Monitor
Product characteristics
● Rotary metal bracket, stable and convenient.
● Compatible / FC/SC/ST/LC/SC female connector/LC male connector
● 4000mAH large capacity lithium power, 20 hours standby.
● real time video，support extend t-flash card ,quick check the pollution degree of female connector and male conector
● 400 times magnification, the stain is clearly visible.
● 3.5 inch HD LCD display.
● 1/3 inch sensor, 300,000 effective pixels.
● removable Silicon Case，reduce the damage by collising or dropping in a certain extent
● Small size, one-handed, convenient and fast.
Specifications
|
JW5009S probe |
Magnification |
400X |
|
|
Resolution(μm) |
surpass 1.0 |
||
|
Visual range(μm) |
0.316*0.285 |
||
|
Dimension(μm) |
235(W)*95(D)*30(H) |
||
|
Image Sensor |
1/3 480 |
||
|
Storage Temperatrue |
-18℃~35℃ |
||
|
Weight(kg) |
0.11 |
||
|
3.5-inch LCD display |
Image |
Image size(mm) |
22 |
|
Pixels |
307200 |
||
|
Video |
Frequency |
25FPS |
|
|
LCD screen |
960*240 LCD |
||
|
Video output mode |
NTSC/PAL |
||
|
Playback Format |
AVI |
||
|
User interface |
Compatible memory cards |
TF |
|
|
Capacity |
8GB |
||
|
USB |
1.1/2.0 |
||
|
Hard disk format |
FAT32 |
||
|
Power supply |
AC adapter |
DC 5V/2A |
|
|
Internal Battery |
Lithium battery 4000Mah |
||
|
Media Player |
≥7 |
||
|
Weight(kg)/W*D*H(mm) |
0.085/78*22*56 |
||
